To remove a kitchen sink drain flange, disconnect the P-trap from the drain tailpiece, loosen and remove the locknut securing the drain body beneath the sink using a pair of channel-lock pliers or a drain wrench, break the plumber’s putty seal between the flange rim and the sink basin by tapping upward from below or twisting the drain body, then lift the flange out from the top of the sink. The entire process takes 15 to 30 minutes with basic hand tools and requires no specialized plumbing skills.
The kitchen sink drain flange is one of the most overlooked components in residential kitchen plumbing until it rusts, cracks, corrodes, develops a persistent leak, or needs to be replaced during a faucet or countertop renovation.
Removing it incorrectly is one of the more common sources of under-sink water damage during DIY kitchen projects because the flange seal involves multiple layers of connection that must be released in the correct sequence.
This guide covers every flange type, every connection method, every tool option, and every scenario a homeowner is likely to encounter during a kitchen sink drain flange removal.
What a Kitchen Sink Drain Flange Is and How It Is Constructed
A kitchen sink drain flange, also called a sink drain basket, sink strainer body, drain fitting, or sink flange assembly, is the visible metal or plastic ring that sits in the drain opening at the bottom of the kitchen sink basin. It serves three simultaneous functions: it provides a finished, decorative rim around the drain hole, it creates a watertight seal between the sink basin material and the drain system below, and it accepts and supports the drain strainer basket that catches food particles before they enter the drain line.
The flange assembly consists of several components that work together as a system. The flange body is the main cylinder that passes through the sink drain hole from top to bottom. The flange rim (also called the flange lip or collar) is the wider, flat ring at the top that rests on the sink basin surface and is visible from above. Between the flange rim and the sink basin surface sits a plumber’s putty bead or a rubber gasket that creates the watertight seal and prevents water from leaking between the flange and the sink. On the underside of the sink, a rubber friction ring (also called a pressure gasket or cone gasket) seats against the sink’s underside around the drain hole, followed by a friction ring or cardboard friction ring, and then a locknut or mounting nut that threads onto the outside of the flange body and clamps the entire assembly tightly against the sink from below.
In configurations with a garbage disposal, the drain flange is designed specifically to accept the disposal mounting assembly rather than a standard tailpiece and P-trap connection. These disposal flanges (also called sink flanges for garbage disposal or disposal mounting flanges) look similar to standard flanges from above but have a slightly different mounting configuration underneath and must be matched to the disposal brand’s mounting system.
Drain Flange Materials and Finishes
Kitchen sink drain flanges are manufactured in several materials, each with different removal considerations.
Stainless steel flanges are the most common type in modern sinks. They resist corrosion well but can develop a thin ring of corrosion at the putty seal over years of use. They thread and unthread from their locknuts relatively easily when compared to brass or older materials.
Brass flanges, common in older homes and premium fixtures, are extremely durable but prone to galvanic corrosion when in contact with dissimilar metals in the drain assembly. Brass flanges often develop tight mineral bonding between the flange body and the locknut threads over decades, requiring penetrating oil to free.
Chrome-plated brass flanges are the standard in mid-range and premium kitchen sinks. The chrome plating provides surface protection but can chip or peel over time, exposing the brass substrate to accelerated corrosion.
Plastic (PVC or ABS) flanges are used in lower-cost sinks and are the easiest to remove due to their resistance to thread corrosion, but they are also the most likely to crack if excessive force is applied during removal.
Popular drain flange brands available as replacements include Moen, Delta Faucet, Kohler, American Standard, Danco, Keeney Manufacturing, Plumbcraft, Eastman, InSinkErator (for disposal flanges), and Waste King (for disposal flanges).
Types of Kitchen Sink Drain Flange Assemblies
Understanding the specific assembly type in your sink determines which tools are needed and which steps to follow during removal.
Standard Locknut Assembly (Most Common)
The most common configuration used in the majority of residential kitchen sinks built after 1970 uses a threaded locknut that screws directly onto the exterior threaded portion of the flange body below the sink. The locknut compresses the rubber gasket and friction ring against the underside of the sink basin to create the watertight clamping seal. This assembly is removed by holding the flange body from rotating (usually by holding the strainer basket from above) while turning the locknut counterclockwise from below.
Snap-Lock or Snap-In Strainer Assembly
Some drain flange assemblies, particularly those in stainless steel undermount sinks from manufacturers including Blanco, Franke, and Elkay, use a snap-lock mechanism where the strainer basket locks into the flange body from above with a quarter-turn or a snap-in engagement. In these assemblies, only the inner strainer basket is removable from above. The outer flange body is still secured by a locknut below the sink in the standard way.
Three-Bolt Mounting Assembly (Garbage Disposal Flange)
Garbage disposal flanges use a different mounting system from standard drain flanges. Brands including InSinkErator use a three-bolt mounting ring (also called a mounting collar or snap ring) that attaches to the underside of the flange body through a snap ring groove and is held in place by three mounting screws. The disposal unit hangs from this mounting ring rather than threading onto the flange body. Removing a disposal flange requires first removing the garbage disposal unit from the mounting ring before the flange body can be accessed.
Press-Fit or Silicone-Sealed Flanges
Some newer sink designs, particularly undermount sinks and farmhouse sinks with very thin basins, use a silicone sealant instead of plumber’s putty for the flange-to-basin seal. Silicone-sealed flanges are more challenging to remove because the cured silicone creates a strong adhesive bond between the flange rim and the sink surface that does not release simply by unscrewing the locknut. A putty knife, a oscillating multi-tool, or a utility knife must be used to cut through the silicone bead before the flange will release.
Tools and Materials Required to Remove a Kitchen Sink Drain Flange
Having the correct tools assembled before beginning prevents damage to the sink, the flange, and the drain assembly from improvised methods.
Essential tools:
- Slip-joint pliers or groove-joint pliers (channel-lock pliers) for holding the drain body and gripping the locknut
- Drain wrench or basket strainer wrench (also called a drain spanner wrench) for gripping the interior of the locknut in tight spaces; common models include the Ridgid 2-in-1 Drain Wrench and the Danco Drain Key
- Putty knife or 5-in-1 painter’s tool for separating the flange rim from the plumber’s putty seal
- Utility knife for scoring silicone-sealed flanges
- Flashlight or headlamp for visibility under the sink cabinet
- Pipe wrench as a backup for corroded or seized locknuts
- Penetrating oil such as WD-40, PB Blaster Penetrating Catalyst, or Kroil Penetrating Oil for freeing corroded locknut threads
- Adjustable wrench or combination wrench set for supplementary gripping
- Bucket and towels for catching water in the P-trap when it is disconnected
Replacement materials (if replacing during removal):
- Plumber’s putty (such as Oatey Plumber’s Putty, Harvey’s Plumber’s Putty, or Hercules Plumber’s Putty) for re-sealing the new flange
- Silicone sealant for sinks where putty is not recommended (composite, acrylic, or stone sinks)
- Replacement drain flange assembly in the correct size (standard is 3.5-inch drain opening diameter for most kitchen sinks)
Step-by-Step Guide to Remove a Kitchen Sink Drain Flange
Step 1: Clear the Under-Sink Cabinet and Turn Off the Water Supply
Remove all items stored under the sink to provide full access to the drain assembly. While water supply shut-off is not strictly required for drain flange removal (the water supply does not connect directly to the drain), turning off the hot and cold shut-off valves under the sink is a good practice to prevent accidental water use that would send water through the open drain during the process. Place a bucket and towels under the P-trap before disconnecting anything.
Step 2: Disconnect the P-Trap from the Drain Tailpiece
The drain tailpiece is the short, straight pipe section that connects the bottom of the flange body to the P-trap inlet. Use slip-joint pliers or hand pressure to loosen and unscrew the slip-joint nut connecting the P-trap inlet to the tailpiece. Slide the P-trap free from the tailpiece. The water retained in the P-trap will empty into the bucket.
If the sink has a garbage disposal, the disposal must be removed from the mounting assembly before proceeding to flange removal. To remove an InSinkErator or similar disposal, turn the disposal counterclockwise (as viewed from below) approximately 30 to 45 degrees until it releases from the mounting ring, then lower it carefully. Disconnect the electrical connection (unplug or disconnect at the junction box) and set the unit aside.

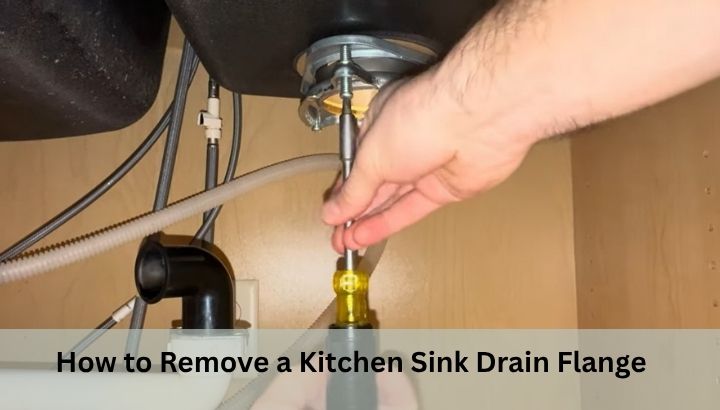

Step 3: Hold the Flange Body to Prevent Rotation
The most common obstacle during flange locknut removal is the flange body spinning freely in the drain hole when torque is applied to the locknut below. The flange must be held stationary from above while the locknut is turned from below.
From above the sink, insert a drain key, a pair of needle-nose pliers, or a flat-head screwdriver through the drain basket openings to brace against the interior of the strainer and prevent rotation. Alternatively, if the strainer basket is removable, insert a large flat-head screwdriver across the drain opening, braced against the sink basin surface, to hold the flange rim in place.
For sinks where access from above is easy, a dedicated basket strainer wrench or strainer holder inserted into the strainer’s crossbar pattern holds the flange firmly while the locknut is worked from below. Products such as the Danco Drain Strainer Basket Wrench (10040) and the General Wire Spring Strainer Wrench are designed precisely for this purpose.
Step 4: Remove the Locknut from Below
Grip the locknut (the large threaded ring on the underside of the flange body) with channel-lock pliers or a drain spanner wrench and turn counterclockwise. Apply steady, firm pressure. For a recently installed flange, the locknut should release with moderate effort.
For a corroded or seized locknut that resists turning, apply penetrating oil liberally to the threads where the locknut meets the flange body. Allow the penetrating oil to soak for 15 to 30 minutes, then attempt again. PB Blaster Penetrating Catalyst and Kroil are particularly effective on severely corroded drain assembly threads because their capillary action draws the oil into very tight thread gaps. If the locknut still will not turn after penetrating oil treatment, grip it with a pipe wrench for greater torque leverage. Use the pipe wrench’s toothed jaw gripped tightly on the locknut flats and apply slow, increasing force to break the corrosion bond.
In extreme cases where the locknut is completely seized and cannot be freed by any turning force, a rotary cut-off tool with a metal cutting disc or a hacksaw can be used to cut through the locknut radially, splitting it open so it can be removed in pieces. This destroys the locknut but preserves the flange body and the sink. Work carefully to avoid cutting into the sink basin material below.
Step 5: Remove the Friction Ring, Gasket, and Rubber Washer
Once the locknut is fully removed, slide off the cardboard or plastic friction ring (if present), the rubber cone gasket, and any additional fiber or rubber washers from the flange body below the sink. These components are typically not reused when installing a new flange as they compress and deform to the specific gap of the original installation and may not seal properly a second time.
Step 6: Push or Pull the Flange Body Out of the Sink
With all hardware removed from below, the flange body can now be pushed or pulled out of the drain hole. Push upward on the flange body from below to pop it out of the drain hole from underneath, or reach into the basin from above and pull the flange rim up and out.
For plumber’s putty-sealed flanges, the putty bead under the flange rim creates a firm adhesive grip on the sink surface that resists simple pulling. To break the putty seal, insert a putty knife or the blade of a 5-in-1 painter’s tool between the flange rim and the sink basin surface and work it around the perimeter of the flange rim, slicing through the putty bead. Once the putty seal is broken on all sides, the flange lifts free easily.
For silicone-sealed flanges, use a utility knife to score through the visible edge of the silicone bead around the flange rim from above, then work the putty knife underneath the rim to pry it free. A plastic scraper is safer than a metal tool for composite granite, acrylic, or fireclay sink surfaces, which can be scratched by metal edges.
Step 7: Clean the Drain Opening and Sink Surface
Once the flange is removed, use a putty knife or plastic scraper to remove all remaining plumber’s putty or silicone residue from the drain opening rim on the top of the sink and from the underside of the sink around the drain hole. Clean both surfaces with isopropyl alcohol or mineral spirits to remove grease and residue to bare, clean material. This step is critical for achieving a proper seal when the new flange is installed.
Inspect the drain hole opening in the sink for chips, cracks, or corrosion around the rim that may affect the new flange’s ability to seat properly. Hairline cracks in the sink basin material around the drain hole are a common finding in older sinks and may indicate that the sink itself warrants replacement rather than just the flange.
Comparison Table: Kitchen Sink Drain Flange Types and Removal Methods
| Flange Type | Sealing Method | Removal Tool Required | Difficulty | Common Brands | Key Challenge |
|---|---|---|---|---|---|
| Standard locknut (stainless) | Plumber’s putty | Channel-lock pliers or drain wrench | Easy | Danco, Keeney, Moen | Flange spinning during locknut removal |
| Standard locknut (brass) | Plumber’s putty | Penetrating oil + pipe wrench | Moderate | Kohler, American Standard | Corroded thread seizure |
| Disposal flange | Plumber’s putty | Disposal removal first, then wrench | Moderate | InSinkErator, Waste King | Removal of disposal unit before flange |
| Silicone-sealed flange | Silicone sealant | Utility knife + putty knife | Moderate | Blanco, Franke, Elkay | Cutting bonded silicone without surface damage |
| Three-bolt mounting ring | Plumber’s putty | Snap ring removal, mounting screws | Moderate | InSinkErator Evolution | Snap ring release mechanism |
| Plastic PVC flange | Plumber’s putty or silicone | Slip-joint pliers, careful force | Easy | Generic, builder-grade | Risk of cracking with excessive torque |
| Farmhouse / apron sink flange | Silicone + optional putty | Oscillating tool or utility knife | Moderate to Hard | Kohler, Rohl, Shaws | Very tight silicone bond on thick basin |
Why You May Need to Remove the Kitchen Sink Drain Flange
Understanding the range of situations that require flange removal helps determine whether the job is a standalone repair or part of a larger project.
Flange Corrosion and Rust
The most common reason for removing a kitchen sink drain flange is visible rust, corrosion, or surface deterioration on the flange rim or body. On chrome-plated brass flanges, the plating eventually chips or wears away and the exposed brass corrodes, producing a rough, pitted, or discolored surface around the drain opening. On stainless steel flanges, prolonged contact with chloride-based cleaners or standing water with high mineral content can initiate localized pitting corrosion. A corroded flange is not a cosmetic problem alone; advanced corrosion can perforate the flange body and create a leak pathway between the flange and the drain line.
Leaking Around the Drain Opening
A kitchen sink that drips water under the cabinet specifically at the drain connection (rather than at the P-trap fittings or supply lines) usually indicates a failed plumber’s putty seal or a cracked rubber gasket under the flange. The putty seal between the flange rim and the sink basin dries out and loses its plasticity over years of use, eventually separating from one or both surfaces and allowing water to seep between the flange rim and the sink. Removing and reinstalling the flange with fresh plumber’s putty resolves this type of leak completely.
Sink Replacement or Countertop Renovation
During any sink or countertop replacement project, the existing drain flange must be removed before the sink can be lifted out (in drop-in sink installations) or before the countertop can be separated from the sink (in undermount sink installations). The flange is one of the last components disconnected before sink removal and one of the first installed in a new sink.
Garbage Disposal Installation or Replacement
Installing a garbage disposal in a kitchen that previously had only a standard drain requires replacing the standard drain flange with a disposal-specific flange designed to accept the disposal’s mounting ring assembly. Conversely, removing a garbage disposal and returning to a standard drain configuration requires replacing the disposal flange with a standard flange. Both situations require full flange removal.
Clogged Drain That Cannot Be Cleared Through Standard Methods
In situations where a severe drain clog is located at the drain opening level or where a foreign object has fallen through the drain strainer and lodged in the drain body, removing the flange provides full access to the drain opening for manual object retrieval or direct snake insertion.
Common Mistakes When Removing a Kitchen Sink Drain Flange
Applying Torque to the Locknut Without Holding the Flange Body
The most common mistake beginners make during flange removal is gripping the locknut with pliers and turning without first securing the flange body from spinning. When the flange body rotates freely with the locknut, no relative motion occurs between the two components and the threads never disengage. All the effort produces no result except fatigue and possible slipping that scratches the sink basin. Always secure the flange body from rotating at the top before applying any torque to the locknut below.
Using a Pipe Wrench Directly on a Chrome Flange Body
A pipe wrench‘s serrated jaws crush and deform soft metals under high grip force. Using a pipe wrench directly on the visible chrome or stainless portion of the flange body to hold it while turning the locknut will leave deep jaw marks, crush the metal, and potentially crack the flange body. If additional holding force is needed on the flange body, grip only the flange body below the sink (not the decorative rim visible from above) with a cloth-wrapped wrench, or use the proper basket strainer wrench tool designed for this purpose.
Ignoring Penetrating Oil on Corroded Assemblies
Homeowners frequently attempt to force a corroded locknut with maximum wrench pressure immediately without first applying penetrating oil. This approach risks breaking the locknut, stripping its threads, cracking the flange body, or damaging the sink basin around the drain hole when the tool slips under high force. The 15 to 30 minutes invested in allowing PB Blaster or Kroil to penetrate the threads is almost always the difference between a smooth removal and a destructive one.
Cutting Through Silicone with a Metal Scraper on Delicate Sinks
Composite granite sinks (from Blanco, Franke, Elkay), acrylic sinks, and fireclay sinks are all susceptible to surface scratching from metal scraper blades used to cut through the silicone bead under the flange rim. A single aggressive scraper stroke can create a visible scratch that permanently damages the sink surface in the most visible area around the drain. Always use a plastic scraper, a nylon scraper, or a plastic putty knife when working on these sink materials, and score the visible outer edge of the silicone bead with a utility knife first to limit the blade contact area.
Skipping the Plumber’s Putty Removal Before Reinstallation
After removing the old flange, some homeowners reuse the existing compressed and hardened plumber’s putty by pressing the new flange onto it rather than cleaning the surface and applying fresh putty. Old plumber’s putty that has been in compression for years loses its plasticity and cannot conform to the new flange rim’s surface. The result is an uneven seal with gaps that will leak immediately or develop a leak within weeks. Always remove all old putty completely and apply a fresh bead before installing any replacement flange.
Disconnecting the P-Trap After Attempting Flange Removal
Some beginners attempt to remove the flange without first disconnecting the P-trap and tailpiece from the drain body. The tailpiece is threaded into or pressed onto the bottom of the flange body, and with it still connected to the P-trap, neither the flange nor the locknut can move freely. The correct sequence is always to disconnect the drain plumbing below first, giving the flange body full freedom of movement, before attempting locknut removal and flange extraction.
Frequently Asked Questions
How do I remove a kitchen sink drain flange that is stuck due to corrosion?
To remove a stuck kitchen sink drain flange caused by corrosion, apply penetrating oil such as PB Blaster Penetrating Catalyst or Kroil Penetrating Oil liberally around the threads where the locknut meets the flange body below the sink. Allow it to soak for a minimum of 30 minutes, and ideally overnight for severely corroded assemblies. After soaking, grip the locknut with channel-lock pliers or a pipe wrench and apply slow, steady counterclockwise torque while holding the flange body stationary from above with a basket strainer wrench or a screwdriver braced across the drain opening. If the locknut still cannot be freed, use a rotary cut-off tool with a thin metal cutting disc to score and split the locknut, removing it in pieces. This approach preserves the flange body and the sink while sacrificing only the locknut, which is included in any replacement flange kit.
What tools do I need to remove a kitchen sink drain flange without a drain wrench?
A dedicated drain wrench or basket strainer wrench is helpful but not strictly necessary to remove a kitchen sink drain flange. A pair of channel-lock pliers (groove-joint pliers) can grip the locknut from below, and a large flat-head screwdriver inserted through the drain strainer opening and braced against the basin surface holds the flange from spinning from above. Some homeowners use a two-handled approach with one set of pliers below gripping the locknut and a second set of pliers above gripping the flange body through the drain opening. The key is ensuring both the flange and the locknut are held independently so their relative rotation disengages the threads.
Can I remove a kitchen sink drain flange without turning off the water supply?
Yes, you can remove a kitchen sink drain flange without turning off the water supply to the home or to the kitchen sink supply valves, because the drain system is entirely separate from the water supply system. The drain flange connects only to the drain line, not to any pressurized supply pipe. However, turning off the shut-off valves under the sink prevents any accidental water use from sending water down the open drain during the removal process, which would spill into the open bucket or onto the work area. It is best practice to close the shut-off valves for the duration of the flange removal and reinstallation work.
How do I remove a garbage disposal flange when replacing my kitchen sink drain?
To remove a garbage disposal flange when replacing the kitchen sink drain, first disconnect the disposal unit. For an InSinkErator model, rotate the disposal body counterclockwise approximately 30 degrees until it releases from the mounting ring, then lower it carefully after disconnecting the electrical supply. For a Waste King model, loosen the three mounting screws on the mounting ring until they release the disposal. Once the disposal is removed, the mounting ring and snap ring assembly beneath the sink can be slid off the flange body, exposing the standard locknut or mounting hardware. From this point, the disposal flange removal follows the same steps as a standard flange: hold the flange body from above and unscrew the locknut counterclockwise from below.
What is the difference between a drain flange and a drain strainer for a kitchen sink?
The drain flange (also called the flange body or drain fitting) is the complete assembly that passes through the sink drain hole and includes the visible rim at the top of the basin, the cylindrical body passing through the sink, and the threaded lower portion that accepts the locknut. The drain strainer (also called the strainer basket or strainer insert) is the removable insert that sits inside the flange body and catches food particles. The strainer is typically removable by hand for cleaning, while the flange is permanently fixed to the sink through the locknut assembly and requires tools for removal. When homeowners refer to removing the kitchen sink drain flange, they typically mean removing the entire fixed flange assembly, not just the removable strainer basket.
How do I know if I need to remove the kitchen sink drain flange or just replace the strainer basket?
If the problem is a damaged, corroded, or missing strainer basket insert, only the strainer needs replacement, not the entire flange. Strainer baskets are removable by hand or with a quarter-turn and can be replaced in minutes without any under-sink work. If the problem is a leak between the flange rim and the sink basin surface, a cracked or corroded flange body, a spinning or loose flange that cannot be tightened, or a need to change from a standard drain to a disposal flange or vice versa, the full kitchen sink drain flange must be removed. A quick diagnostic check: if tightening the locknut from below stops the leak or looseness, the flange itself is intact and only the hardware needs adjusting. If the flange rim itself is cracked, pitted through, or separated from the sink basin despite a tight locknut, the flange body requires replacement.
How much does it cost to have a plumber remove and replace a kitchen sink drain flange?
A licensed plumber typically charges between $75 and $200 for labor to remove and replace a standard kitchen sink drain flange, depending on local labor rates, the condition of the existing flange (whether penetrating oil or cutting is required), and access difficulty. A replacement standard drain flange assembly costs $10 to $40 depending on material and brand, bringing the total professional cost to approximately $85 to $240. Doing the replacement yourself costs only the parts ($10 to $40) plus the cost of any tools not already owned, with a basket strainer wrench running $10 to $25 and penetrating oil costing $5 to $10. The DIY material cost is typically under $50 for a complete standard flange replacement including fresh plumber’s putty.
Can I reuse the plumber’s putty when reinstalling a kitchen sink drain flange?
No. Old plumber’s putty that has been compressed between a drain flange rim and the sink basin for months or years loses its plasticity and becomes rigid and crumbly. Attempting to reuse this hardened putty by pressing a new or reinstalled flange onto it will not create a complete seal because the hardened putty cannot conform to the specific contours of the new flange rim. All old putty must be removed completely from both the sink basin surface and the underside of the flange rim before reinstallation. Fresh plumber’s putty rolled into a rope approximately 3/8 inch in diameter and pressed uniformly around the underside of the flange rim provides the flexible, gap-filling seal that prevents water ingress. On composite granite, acrylic, natural stone, or certain stainless undermount sinks, use 100% silicone sealant rather than plumber’s putty, as putty can stain or damage these surfaces.
Conclusion
Removing a kitchen sink drain flange is a manageable DIY plumbing task that requires understanding the assembly type, using the correct tools to prevent rotation while disengaging the locknut, applying penetrating oil for corrosion-seized assemblies, and separating the putty or silicone seal cleanly without damaging the sink surface.
Working through the correct sequence, which starts with P-trap disconnection, then locknut removal with the flange held stationary, then putty seal separation, ensures clean flange extraction without forcing any component.
Whether the goal is corroded flange replacement, a drain leak repair, a garbage disposal installation, or a full sink upgrade, the removal process is the same foundation that every successful kitchen drain project builds on.
